Nomvember 7, 2019 (v4.16.19)

Here some of the new features available recently on MoDraw :

Multiple object selection + alignement

Since MoDraw v4.16.19 you can now select multiple objects at the same time.

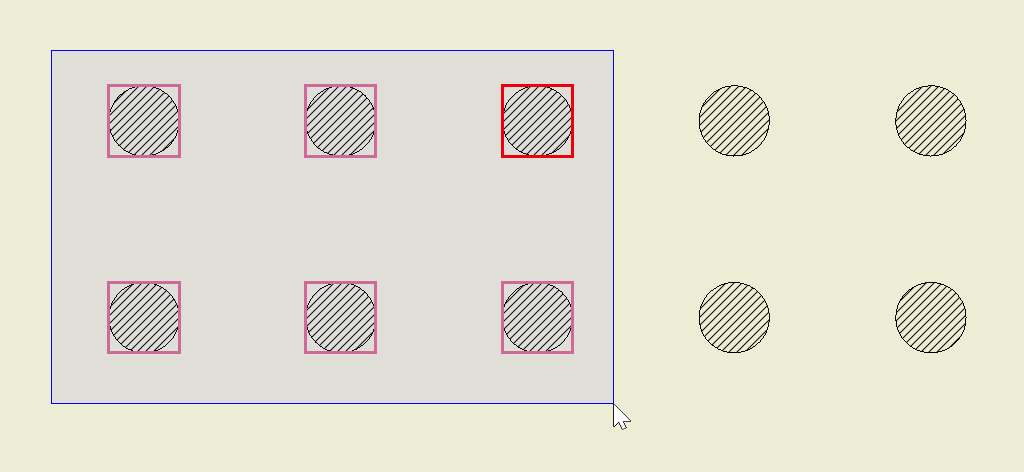

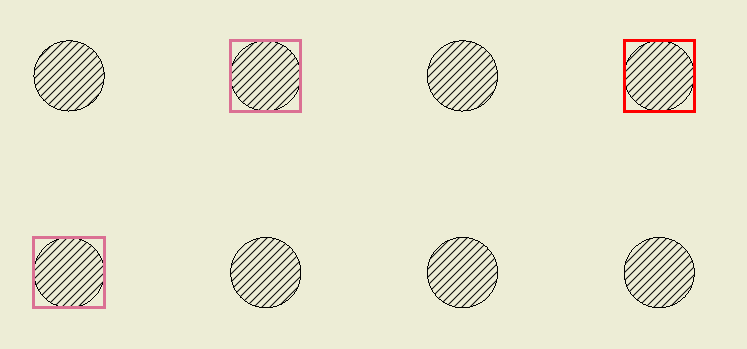

To select multiple object, hold on the CTRL key when selecting a new object. You can also draw a rectangle using the left mouse button. Objects within the rectangle will then be selected.

It would be particularly usefull to delete multiple objects at the same time.

style-2 style-space style-2

Duplicate Object

Since MoDraw v4.16.14 you can now duplicate an object to create copies on the X and Y axis.

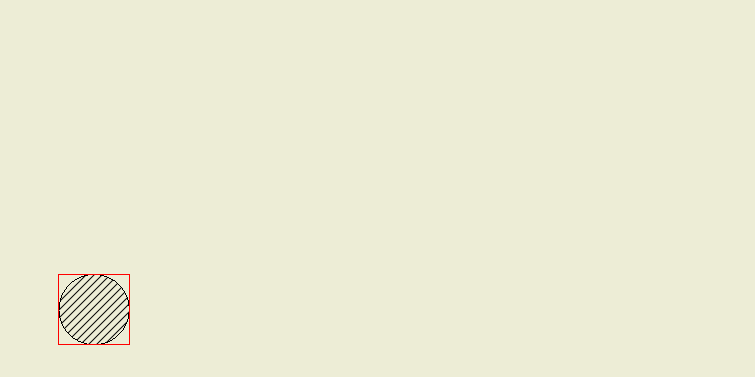

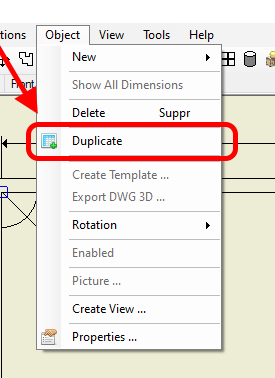

After having selected an object, click on the duplicate function and enter the quantities you want on the X and Y axis. Also, you will have to enter the distance between objects on the X and Y axis.

When you click Apply, MoDraw will create copies of the selected object. This apply to all kind of objects but will probably be the most usefull with columns.

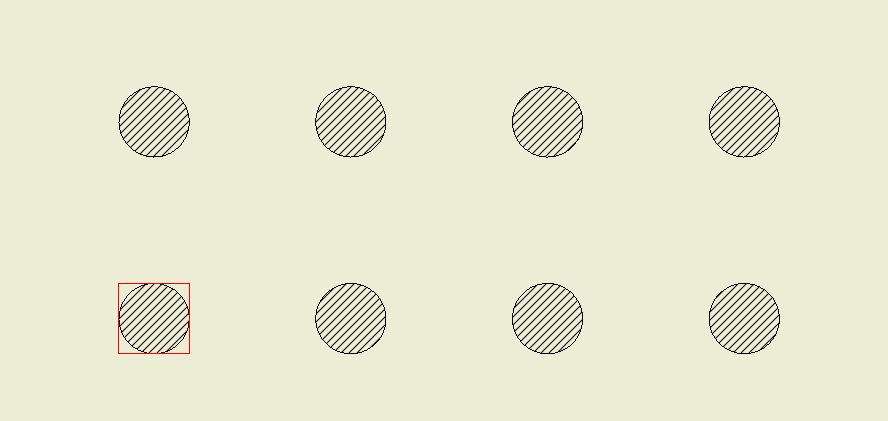

Here a quick view of this feature :

style-2

style-2 style-space style-2

style-1

Changing the Text Height of the Comment

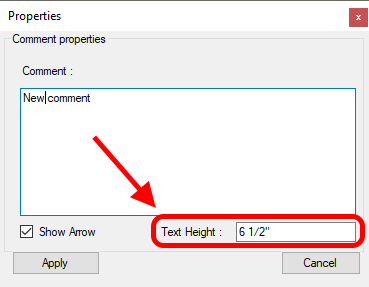

Since MoDraw v4.16.10 you can now change the default Text Height of the comments in case you want them to appear smaller or larger.

style-2

Export to Excel

Since MoDraw v4.16.0 you can now export the BOM directly to an Excel (.xlsx) file. Also, new columns have been added, including the installation time. Since it is an Excel format, we have put formulas for totals so they will be automatically updated when changing quantities.

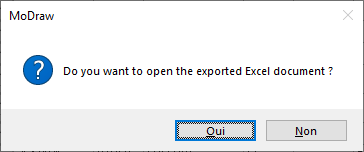

When the exportation is done, MoDraw will ask you if you want to open the file. It's one less step for you to get to your Excel.
