August 31, 2015 (v3.42)

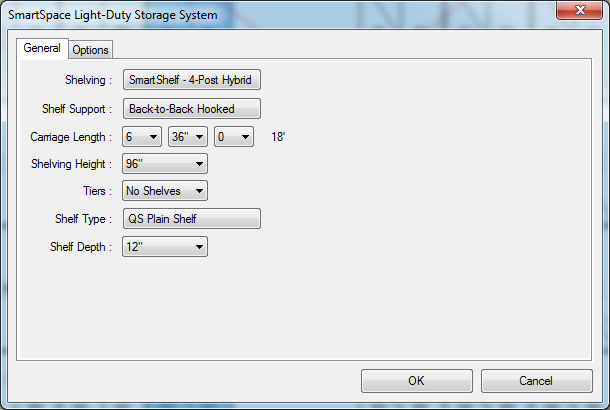

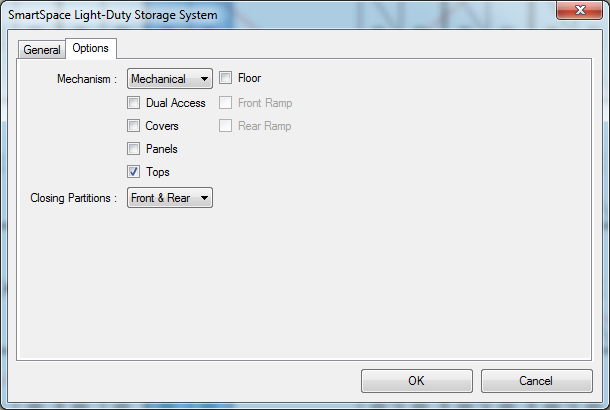

Redesigned SmartSpace Properties Window
Due to many requests, the SmartSpace properties window now match the design of the Mobilex & QuadraMobile more closely.
The options are exactly the same. Only the presentation has changed.
Improved DWG import
MoDraw now better supports importing DWG file with TEXT and BLOCKREF elements.
Most DWG files should now be easier to read without modifications.

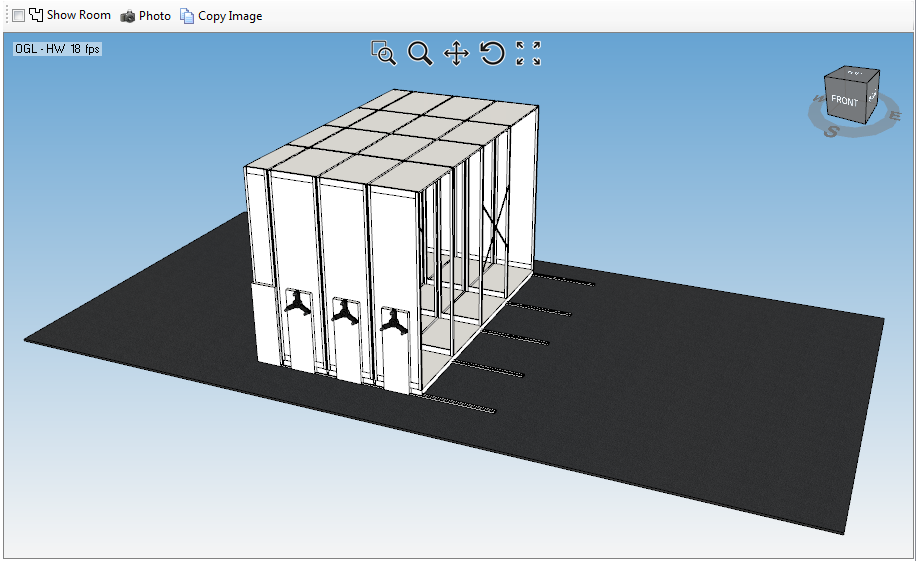

Improved 3D View
MoDraw now uses a new 3D engine that improves usability, image quality and performance.
New icons are available at the top-center of the window (zoom, pan, rotate, zoom fit).
A cube in the top-right corner to ease camera placement (similar to the one in AutoCAD).
| Mouse command | Description |
|---|---|
| MIDDLE BUTTON | Rotation |
| Shift + MIDDLE BUTTON | Zoom |
| Ctrl + MIDDLE BUTTON | Pan |
| WHEEL | Zoom in/out |
